High CPU Usage if OPC Collector Fails to Connect OPC Session
When the OPC Collector fails to establish a session with an OPC server, the collector process experiences abnormally high CPU utilization. The charts show usage when the session failed to connect versus when the session is connected normally. The session is ~280 tags.
<LOCALHOST>{hostname}.{Diagnostics}.Health.{hostname}.Collector.OPC_UA.Process.CpuPercent
<LOCALHOST>{hostname}.{Diagnostics}.Health.{hostname}.Collector.OPC_UA.Process.ThreadCount
OPC Collector: 26.5.0.26173
4 replies
-
I think I've seen this before! It's been a while. It was case 15586 for whoever sees this.
-
Hi ,
Are you able to replicate it on your side easily enough? We haven't been able to. If you can, we would recommend creating a dump file of the OPC Collector while it is in that state. That would give us a better understanding of what is happening and/or why it's consuming CPU. Also, if there are any relevant messages in the message log when it occurs, that would be helpful. You can enable Trace messaging if it's in process, but I wouldn't leave Trace messaging on if it's not occurring as that will consume more resources.
-
How do I create a dump file? I can recreate it by creating a OPCUA connection with 3 groups (I just made 3 randomly), letting it run for a few minutes, then turning off the OPCUA Server. After a couple of minutes the OpcCollector CPU Usage will start to climb and will not stop.
-

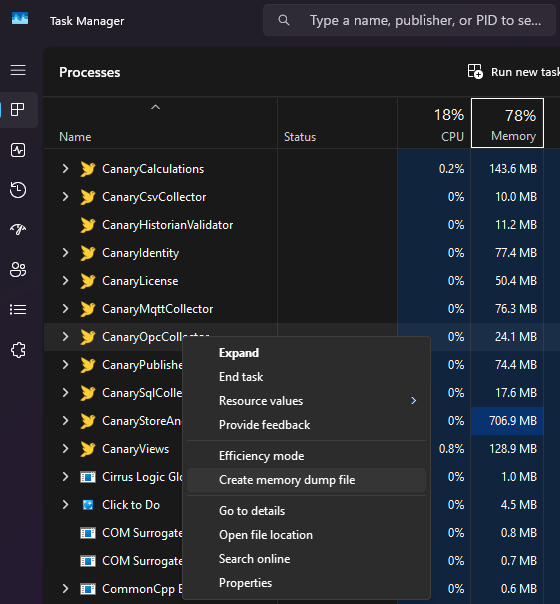

Within Task Manager, right-click the CanaryOPCCollector and select Create memory dump file.
I would then reach out to support@canarylabs.com because they will need to generate an FTP link where you can upload the file. I'll give them a heads up.
-
